Description

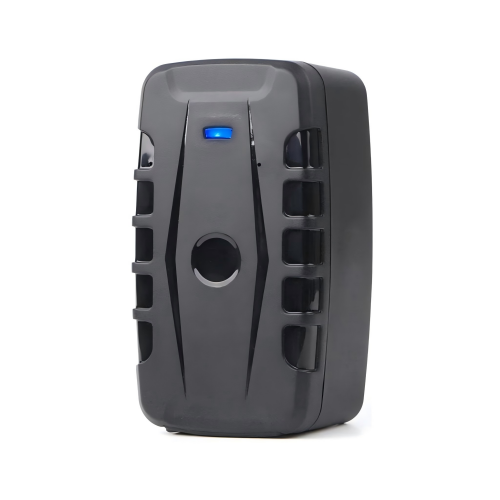

G25 is a 4G Battery Powered GPS tracker. There is 20000mah battery built in it. Its standby time reach 240 days. This battery powered gps tracker can be used for tracking vehicle, container, bicycle, ebike, equipment, asset or anything you want. With its waterproof and strong magnet case, it can be adsorbed on any metal surface. If the gps tracker is taken away, it will send drop alarm to preset number and tracking platform.
Advantage:
Waterproof and dust-proof case
Long life battery for tracking 240 days
Three power saving working mode
Super magnet case with dropped off alarm
Remote timing power on/off
Feature:
1. Support GPS/BD/WIFI/AGPS/LBS locating and real time tracking;
2. High waterproof IP65, super magnet and wireless installation;
3. Support web platform and mobile APP tracking;
4. Big battery rechargeable 20000 mAh and standby time 240 days;
5. Support SMS parameter settings and SMS Google map link;
6. Google map link locating and real-time tracking;
7. Drop off alarm, movement alarm, lower battery alarm, shake alarm and Geo-fence alarm;
8. Sleeping power-save mode remote power on/off.
9.Voice monitoring and recording
10.Built in memory for data store and resend after LTE network received;
11.Work with 4G LTE and 2G 850/900/1800/1900 MHz together
Parameter:
| ITEM Characteristics | NAME | FUNCTION | |
| Electrical | Power supply | Battery powered | |
| Operating voltage range | DC 3.4V – 4.5V | ||
| Working current | 4V/65mA | ||
| Stand-by current | 4V/8mA | ||
| Sleep current | 4V/3mA | ||
| Battery capacity
rechargeable |
6000 mAh (3.7Vpolymer battery) (A version)
10000 mAh (3.7Vpolymer battery) (B version) 20000 mAh (3.7Vpolymer battery) (C version) |
||
| Standby time | 30 days (A version)
50 days (B version) 100 days (C version) |
||
| Environmental | Working temperature | -20°C – 75°C | |
| Storage temperature | -30°C – 80°C | ||
| Operating humidity | 10%-85% RH | ||
| Communication | LTE module | SIMCOM A7670E / A7670SA | |
| Communication band | LTE/4G | LTE-FDD:
B1/B3/B5/B7/B8/B20 B1/B2/B3/B4/B5/B7/B8/B28/B66 |
|
| GSM/2G | 850/900/1800/1900MHz | ||
| SIM card | Normal SIM card | ||
| Antenna | Built-in | ||
| Antenna spec | FPC antenna | ||
| GPS/BD | GPS module | MT2503 | |
| Position way | BDS+GPS+WIFI+LBS | ||
| Cold start time | Average 32 second | ||
| Warm start time | Average 1 second | ||
| Tracking sensitivity | -162 dBm | ||
| Antenna | Built-in | ||
| Antenna size | 6mm x 4mm x 2mm | ||
| GPS band | L1: 1575.42±1.023MHz | ||
| BD Band | B1: 1561.098±2.046MHz | ||
| Satellite channels number | 64 | ||
| Positioning accuracy | <10m（1σ） | ||
| Timing accuracy | <30ns（1σ） | ||
| Speed accuracy | <0.1m/s（1σ） | ||
| Maximum acceleration | 4g | ||
| Maximum speed | 515m/s | ||
| Maximum height | 18000m | ||
| Output port | Light-sensitive | Built-in | |
| Microphone | Built-in | ||

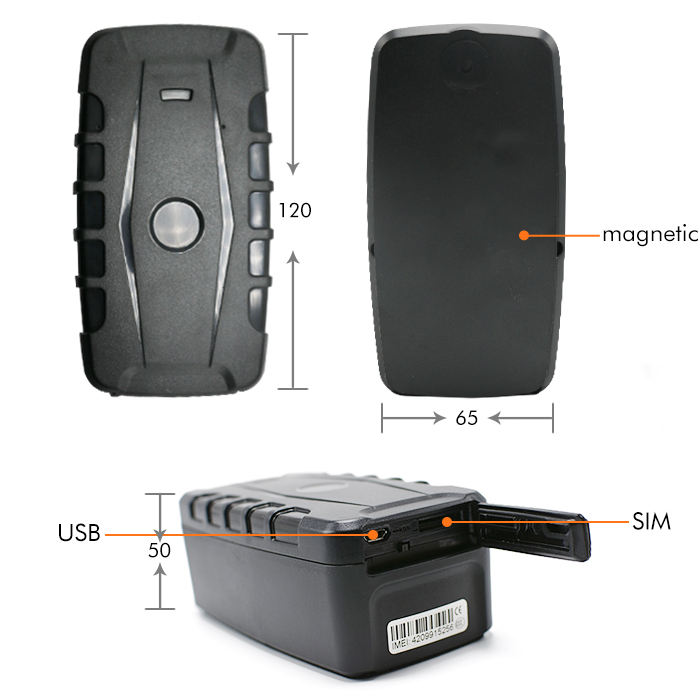

| Dimensions | Device size | 118mm x 60mm x 26mm (A version)
118mm x 60mm x 31mm (B version) 118mm x 60mm x 46mm (C version)
|
|
| Shell material | ABS plastic | ||
| Waterproof IP | IP65 | ||
| Super magnet | 5 PCS Ring magnet | ||
| Device weight | 215g (A version)
300g (B version) 450g (C version) |
||
The battery powered gps tracker 3 working mode:
(Upload time, sleep time,heart beat time and the last working time can change by SMS command)
1.Normal mode:
The position is transmitted every 30 seconds in the working state by default, and the device will enters standby state after being inactive for 2 minutes and would send heartbeat every 5 minutes to keep the server connected.The vibration can wake up device to working state.
2.Power-saving mode:
The position is transmitted every 30 seconds in the working state by default, and the device will enter the sleeping state after being inactive for 2 minutes and would would stop to send and disconnect server in the sleep mode.The vibration can wake up the device to working state.
3.Smart mode:
The device uploads the data to server according to the interval setting, last working state for 2 minutes by default,after the working time it would enter sleep mode, the vibration can’t wake up the devices to work.
